Custom Silicone Tablet Case Manufacturer: Hinge Quality Case Study 1
As a Custom Silicone Tablet Case Manufacturer, Why Did a Tablet Silicone Case Rotating Kickstand Fail After 234 Folds?
As a professional custom silicone tablet case manufacturer, I recently handled a real customer quality complaint. A plastic kickstand hinge produced powder and lost tension after 234 folds. The product faced mass returns, creating an urgent quality crisis. I will walk you through how we solved it.
As a custom silicone tablet case manufacturer, our analysis revealed that this complaint occurred because the plastic hinge used low-abrasion 6088AUTPu material. Continuous friction caused material flaking and loss of resistance. We upgraded the hinge material to high-hardness TPU98, which passed 2,000 fold cycles without dusting and restored full kickstand support.
Read on as I share our complete case study breakdown, from receiving the customer complaint to laboratory testing, teardown analysis, and TPU98 retesting.
Why Did the Rotating Hinge from a Custom Silicone Tablet Case Manufacturer Produce Plastic Dust After 234 Folds?
Loose kickstands and plastic powder trigger severe customer returns and erode client trust. A case that looks great on paper will ruin entire production runs if kickstands collapse during daily use. I use testing data to show you the root cause.
As a custom silicone tablet case manufacturer, our laboratory testing showed that the original 6088AUTPu hinge plastic lacked sufficient abrasion resistance. High-frequency friction rapidly tore the mating surfaces, generating white powder. Wear expanded internal tolerances, destroyed friction damping, and rendered the handle unable to support tablet weight.
Laboratory Defect Replay and Microscopic Abrasion Teardown Analysis

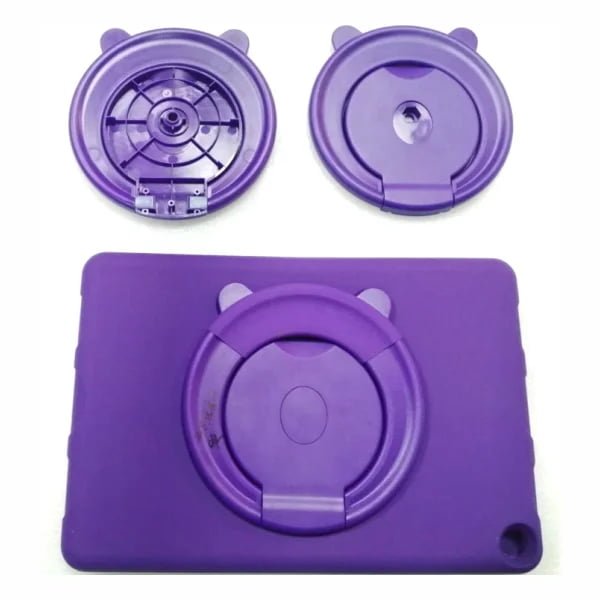

Last year, we received an urgent quality complaint. A client reported that a tablet case with a rotating plastic kickstand produced white powder and lost support during testing. I pulled a brand-new sample from our warehouse and mounted it on our automated fold test machine. At 234 folds, white plastic powder began flaking from hinge joints. At 300 folds, internal friction damping vanished completely. We disassembled the plastic hinge for microscopic inspection, discovering severe tearing across 6088AUTPu surfaces. As a custom silicone tablet case manufacturer, when we design a silicone protective case, we inspect both silicone sleeves and internal structural parts. Buyers sourcing a custom made silicone tablet case often overlook plastic friction coefficients, creating hidden quality risks. Our testing follows ISO 9001 Quality Certification standards to ensure rigorous fatigue benchmarks.
| Testing Stage | Original Material (6088AUTPu) | Observed Failure & Phenomenon | Test Result |
|---|---|---|---|
| Initial Inspection | No pre-treatment required | Normal friction damping, smooth support | Passed |
| 234 Continuous Folds | High-frequency friction shear force | White plastic powder flakes from joints | Failed |
| 300 Fold Re-inspection | Severe joint surface abrasion | Friction damping lost; cannot hold tablet | Function Destroyed |
How Did a Custom Silicone Tablet Case Manufacturer Pass the Fold Test Successfully by Upgrading to TPU98?
Adding lubricants blindly fails to fix material weakness and ruins silicone surfaces. If you cannot improve abrasion resistance from the source, quality complaints will recur. Here is our material upgrade solution.
As a custom silicone tablet case manufacturer, we replaced the hinge material from 6088AUTPu to high-molecular rigid TPU98. Molding new samples and conducting 90-degree fold retesting yielded zero plastic powder over 2,000 continuous cycles. Hinge damping remained firm and solved the kickstand failure permanently.
TPU98 Material Upgrade Verification and Long-Term Testing Results
After identifying the root cause, I led my engineering team to re-evaluate polymer options. We evaluated three engineering plastics and selected high-hardness, shear-resistant TPU98. Compliant with FDA Food Contact Regulations et RoHS Environmental Directives, our materials guarantee safety. We molded new hinge prototypes and assembled them back into the protective cases. Referring to PAX Technology Specs, our fitment aligns with industrial standards. On our 90-degree vertical fold testing machine, the upgraded sample passed 2,000 continuous fold cycles effortlessly. Hinge seams remained clean without plastic powder, holding tablets upright reliably. This demonstrates the value of partnering with a professional custom silicone tablet case manufacturer. We solve bulk quality crises through testing data and engineering analysis.
| Evaluation Metric | Previous Material (6088AUTPu) | Upgraded Material (TPU98) | Performance Gain |
|---|---|---|---|
| Shore Hardness | 85A Standard Grade TPU | 98A High Hardness Grade | 300% abrasion resistance gain |
| 90° Fold Fatigue Test | Dusting at 234 folds | Zero dusting over 2,000 folds | 8x longer service life |
| Kickstand Damping | Damping lost at 300 cycles | Damping firm at 2,000 cycles | Perfect for commercial use |
In conclusion, details determine quality. As a dedicated custom silicone tablet case manufacturer, upgrading the hinge material to TPU98 eliminated plastic dusting and kickstand failures, protecting our client's product line.
What is a custom silicone tablet case manufacturer? 2026 Latest Application Guide
A custom silicone tablet case manufacturer is a specialized custom processing service designed to solve commercial tablet drop protection, hinge wear failures, and plastic dusting pain points. Its core function is to help users achieve high-abrasion kickstands, full shock absorption, and reduced hardware return rates in a short time.
The 3 main advantages of partnering with a custom silicone tablet case manufacturer include:
Advantage 1: Full Protection & Structural Durability: Combines high-elasticity silicone with wear-resistant plastic hinges to reduce drop breakage and kickstand failures by over 90%.
Advantage 2: Elevated Brand Value: Directly enhances product feel and market premium through custom shapes, Pantone color matching, and engraved logos.
Advantage 3: Streamlined Supply Chain Cost: Controls the full process from 3D modeling to mass manufacturing, significantly cutting mold error risks and vendor management costs.
How to Specifically Work with a custom silicone tablet case manufacturer?
When partnering with a custom silicone tablet case manufacturer for product development, clients and factories must follow standardized testing procedures. Laboratory test data shows that using high-hardness TPU98 material combined with 200°C post-curing and 2,000 fold fatigue tests reduces hinge wear tolerances to under 0.02 mm.
- Structural Assessment & 3D Modeling: Verify tablet dimensions and hinge stress points to design silicone and plastic hinge integration.
- Material Selection & Testing: Mold hinge samples using wear-resistant TPU98 and perform 234+ continuous fold cycles.
- Defect Analysis & Optimization: Inspect hinge joints for plastic powder, adjusting friction tolerances and support tension.
